Ultrasound Color Doppler Sonoscape E2 （2 probe include）

System description:

E2 Color Doppler ultrasound system that reaches beyong your expectations due to its compact and fashionable appearance. It fulfills GI, OB/GYN, Cardiac and POC applications to fit your routine scanning needs while its color mode will help you for more accurate and efficient diagnosis of lesions.

Auto Image Optimization:
With the press of a button the image is automatically adjusted and optimized, saving you time with parameter adjustments. Additionally, with Auto Focus on, the focus area follows the depth of the ROI box as it is moved in the scanning field, providing users a excellent Image quality In the desired area of interest.

Automated Calculation:
E2 provides automatic calculations to enhance your diagnostic confidence and save you timefor patient communication.

• Auto IMT is used when determining the level of vascular sclerosis present in the patient by automatically tracing the thickness of the carotid vessels.
• AutoTrace provides users with sensitive and accurate wave tracing, avoiding errors from manual trace and giving out calculation results In no time.

Standard Configurations
Standard Hardware include:

• E2 main unit
• 15.6″ High Resolution LCD color monitor (with auto-adaptive LED backlight)
• Two transducer connector
• USB 2.0/Hard Disk 500 G
• Built-in Battery
• Adaptor
• Standard Software include:
• Imaging modes: B/ 2B/ 4B/ M/ THI/ PHI/ CFM/ PDI/ DirPDI
• Dynamic Multi-beam Technology
• Tissue Harmonic Imaging
• Pure Inversion Harmonic Imaging
• Tissue Specification Imaging
• Spatial Compound Imaging
• Widescan: Trapezoid Imaging
• Convex Extended Imaging
• μ-Scan: 2D speckle reduction technology
• PW Auto Trace
• TEI Index
• DICOM 3.0: Store, Send
• Auto: Auto optimization forB/ M/ PW/ CW
• TGC: Time gain compensation
• Duplex
• Triplex
• B/C dual live
• Standby Mode
• Zoom
• Auto IMT
• 2D Steer
• Biopsy Guide

Standard Configured Transducers

• Linear array L741(Vascular, Small Parts, MSK etc.), 4.0-16.0MHz/ 46mm
• Convex array 3C-A (Abdominal, Obstetrics, Gynecology), 1.0-7.0MHz/ R50mm

Optional Configurations

• Imaging modes: Color M/ CW/ TDI/ AMM
• LGC: Lateral gain compensation
• SR Flow
• Vis-Needle
• B Mode Prospective Saving
• 2D Panoramic Imaging
• Wifi
• ECG

Transducers

• Phased array 7P-B (Cardiac, Transcranial), 2.0-9.0MHz
• Endocavity EC9-5 (Gynecology, Obstetrics, Urology), 3.0-15.0MHz/R8mm
• Phased array 2P1 (Cardiac, Transcranial), 1.5-5.0MHz
• Endocavity 6V1 (Gynecology, Obstetrics, Urology), 3.0-15.0MHz/ R11mm
• Phased array 3P-A (Cardiac, Transcranial), 1.0-6.0MHz

Accessories

• Trolley
• Backpack
• Large Capacity Battery
• Color ink-jet printer: HP Officejet Pro 8000/HP Office jet Pro K5400
• B/W video printer: SONY UP-D897/SONY UP-X898MD
• 250G SSD Hard Drive
• Footswitch

Biopsy Guides

• NGBL741

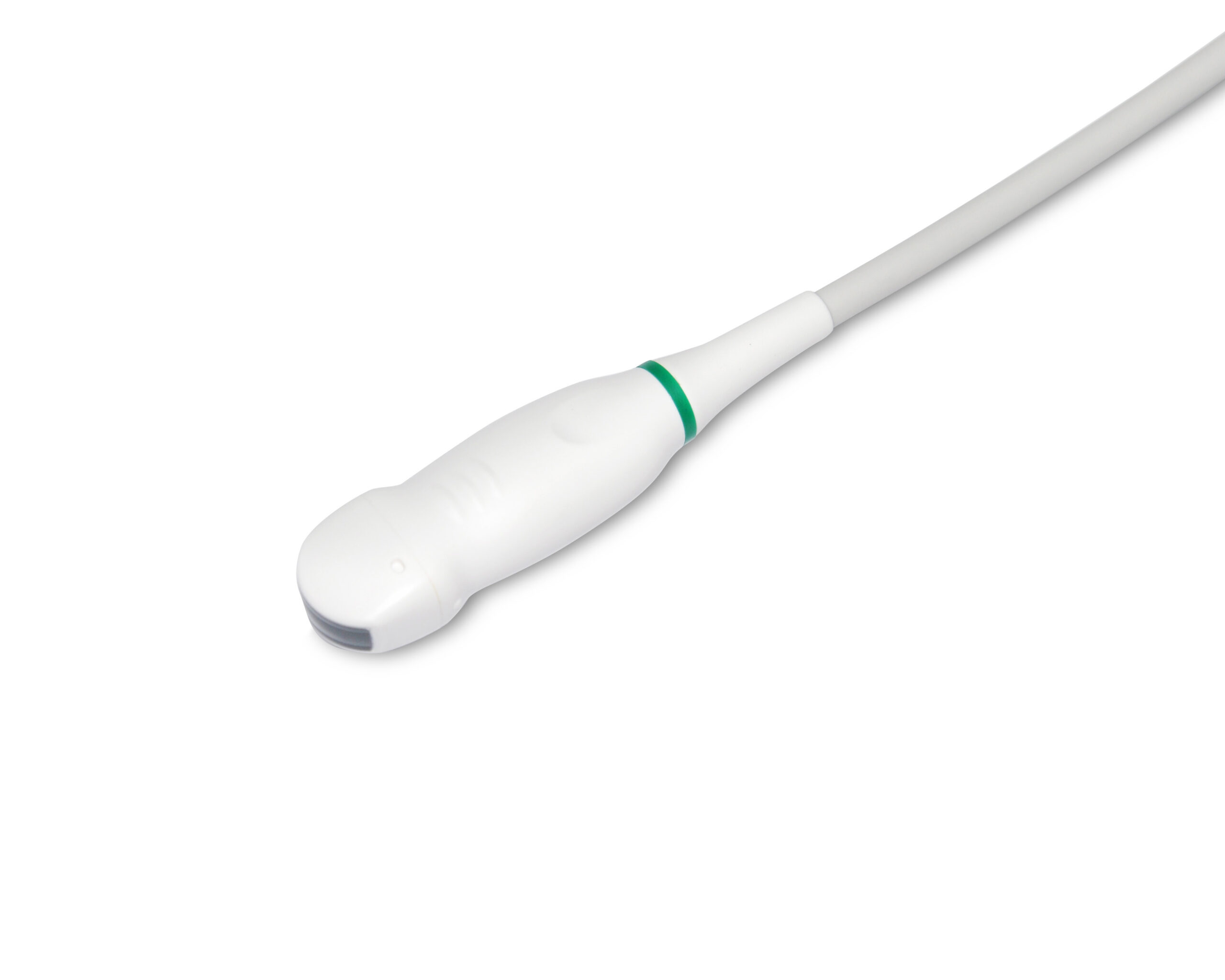

• NGBC613
• NGB3C-A
• NGB3P-A
• NGB6V1
• NGBEC9-5
• NGB7P-B
• NGBL746
• NGBC351
• NGBC361
• NGB2P1
